Product Introduction

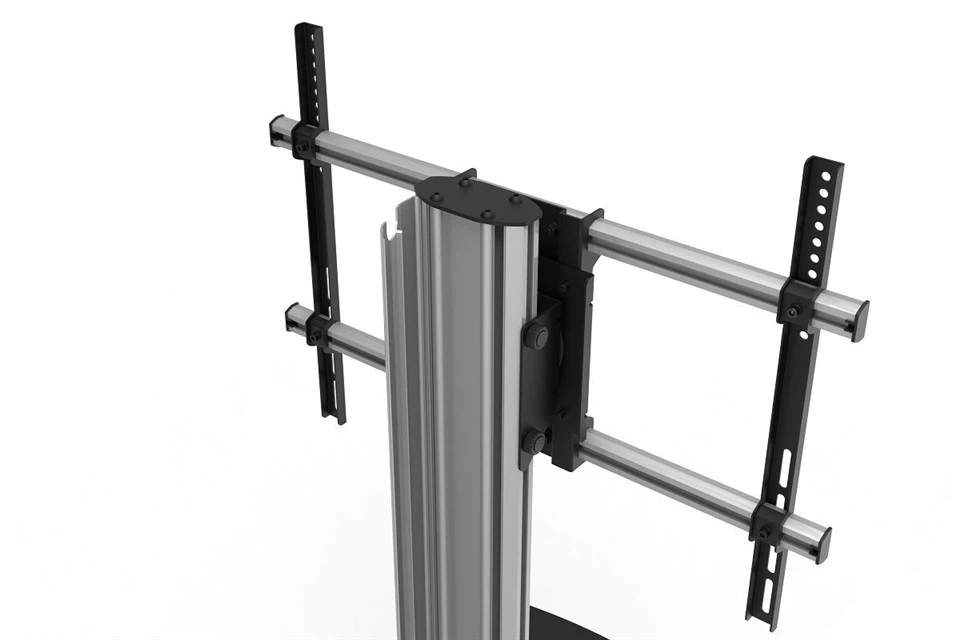

Aluminum Mobile TV Cart is a movable TV support device made of aluminum alloy, which is used to achieve fixed installation and position movement of TV.
Applications
Business meetings and multi-space sharing display
Suitable for corporate conference rooms, training rooms or collaborative office areas, the aluminum alloy structure is light and stable, easy to move between different rooms, and realize multi-point sharing of conference content or demonstration materials.
Mobile teaching support for educational institutions
Widely used in schools, training centers and remote teaching scenarios, it can freely switch positions between different classrooms, and support teaching videos, live classes and multimedia content playback.
Remote collaboration and education in medical environments
Applied to hospital wards, outpatient areas and conference rooms, it is convenient for remote consultation or health knowledge dissemination, and adapts to multi-point deployment and cross-regional application needs.
Mobile display for exhibitions and on-site events
Suitable for exhibitions, roadshows or temporary exhibitions, it supports mobile playback of multimedia materials, and the aluminum alloy bracket is easy to transport and arrange, and adapts to frequent disassembly and scene changes.
Advertising and guide information push for commercial places
Used in retail stores, shopping malls, hotels and other environments, it realizes flexible display of TV advertisements, welcome words or navigation information, and quickly adjusts the playback position through the movable structure to enhance customer reach.

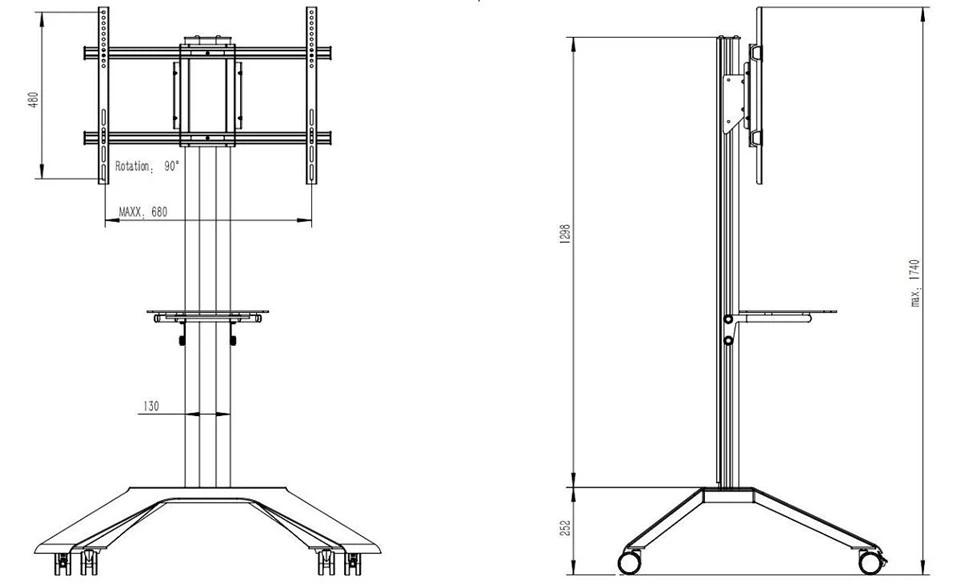

Product Parameters
| Model number： | HDCM001-5 |
| VESA: | 600x400 |
| Fit Screen Size: | 38"-80" |
| Tilt: | +12°to -12° |
| Rotation: | 90° |
| Weight Capacity: | 40kgs(88lbs) |
| Max Height: | 68.5" |
| Material: | Aluminum, Steel, Glass |
| Tray size: | 350x280mm(13.78" x 11.02") |
Installation tools and process
◆ Tools required for installation:
Phillips screwdriver, open-end wrench or socket wrench, Allen wrench (already included with some products), rubber hammer and level. Please check that all parts and screws are complete before installation, including accessories such as columns, bases, universal wheels, TV mounts, support beams, and AV trays.
◆ Installation process:
First, install the universal wheels on the base and fix the columns to ensure verticality. Then install the horizontal support frame and TV mount, and adjust the height and tilt angle according to the size of the TV. Then fix the accessories such as the tray in the appropriate position, and then install the mount arm to the VESA hole on the back of the TV. Finally, hang the TV on the bracket and check whether all connectors are tightened to ensure that the structure is stable, the movement is smooth, and the brakes are effective.
The Benefits of Choosing Us
Full process of aluminum profile processing is automatically controlled
The aluminum alloy main bracket is processed with high precision by the company's own laser cutting machine and CNC bending machine, and the interface deviation is controlled within ±0.2mm. The connection between the base and the main column is completed by robot welding to improve the overall structural rigidity. The anodized surface treatment is completed by the automatic spraying line, and the corrosion resistance meets the 48-hour salt spray requirements of the EN ISO 9227 standard, which is suitable for high-frequency promotion and use environments.
Standard module pre-installation system
The company has established a standard modular component list for the Aluminum Mobile TV Cart. The base, column, slide rail and hanging plate are all processed by automated machines, and pre-assembled and positioned in the general assembly section to control the assembly tolerance of each component to ensure that it can be quickly assembled on site after transportation.
Dedicated production line meets high-frequency delivery
The company has set up a dedicated production area in the factory for mobile cart products including the Aluminum Mobile TV Cart. Relying on laser tube cutting machines, automatic spraying lines and assembly lines, it ensures that multiple batches of products maintain stable beat production under different orders. Cooperate with the internal ERP and material pre-allocation system to support batch shipment by region and time node.
FAQ
Q: What are the advantages of an aluminum mobile TV stand?
A: Aluminum alloy is lightweight, corrosion-resistant, and not easy to rust. It is easier to carry and maintain overall, and has sufficient structural strength to support large-size TVs.
Q: What sizes and weights of TVs are supported?
A: Most aluminum mobile stands support 32-75-inch TVs, have a wide VESA compatibility range (such as 200×200 to 600×400 mm), and generally have a load-bearing capacity of 35-50 kg. For specific parameters, please refer to the product description.
Q: How stable is it when moving? Will it tip over?
A: The bracket base adopts a widened structure and is equipped with locking casters, with a low center of gravity and smooth movement. Before moving, remove the TV peripheral accessories and lock the casters to prevent sliding.
Q: Is the assembly complicated? Is it easy to disassemble and transport?
A: The modular design of the aluminum structure is simple to install, easy to assemble and disassemble quickly, and suitable for frequent movement or temporary exhibition scenes.
